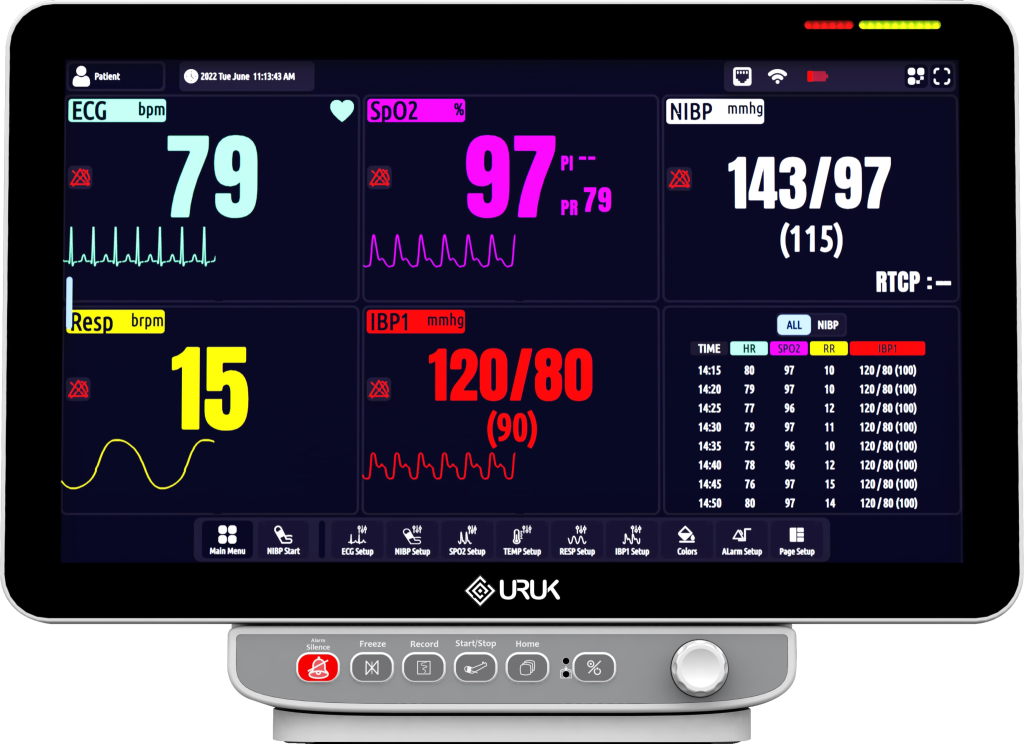

This system features a 19″ color display with a resolution of 1366×768, designed to provide comprehensive monitoring for critical care settings. It supports modules such as ECG, SPO2 (Masimo), NIBP, RESP, 2-channel TEMP, and 2-channel IBP, offering the ability to display up to 7 waveforms and 8 parameters on a single page.

Key Features:

• Multi-Page Configurations: Various pages with magnification options and a specialized page for open heart surgery (Pump Page).

• Trend Storage: Vital parameters stored for up to 96 hours, with storage for 500 NIBP measurements and 150 arrhythmia events.

• ECG Signal Storage: Up to 260 seconds of ECG signal (Sigma) storage.

• Real-Time Alarms: Visual and audible alarms, with Alarm Recall to display signals at the time of alarm occurrence.

• Arrhythmia Detection: Capable of detecting 21 different types of arrhythmias and PVCs per minute.

• ST Segment Analysis: For 12-lead ECG signals.

• Drug Calculation Software: For precise dosage and infusion time calculations.

• Hemodynamic Parameters: Advanced calculation of hemodynamic parameters.

• Pacemaker Signal Detection: Automatic rejection of pacemaker signals.

• Perfusion Index (PI): Measured via the SPO2 module.

• Color Customization: Ability to select colors for each parameter.

• Three Patient Modes: Adult, Pediatric, and Neonate.

• ECG Noise Filters: Filters to reject electrocautery and environmental noise.

• Connectivity: LAN or WiFi connection to the central system, and VGA output.

• Portable & Durable: Equipped with a built-in rechargeable battery and AC power operation, along with an anti-shock and anti-scratch screen protector.

Optional Features:

• Capacitive Touch Screen for enhanced interaction.

• Thermal Printer: For simultaneous printing of 3 waveforms.

• 12-Lead ECG Display: Ability to record and display 12 ECG leads.

• IBP Module: Optional 4-channel IBP module.

• Masimo Rainbow Module: Measures blood parameters including SpCO, SpHb, SpMet, SpOC, and ORI.

• Dual SPO2 Module: Simultaneous connection of two SPO2 modules.

• Brain Function Assessment: Equivalent to BIS index for neurological monitoring.

• EtCO2 & Multi-Gas Monitoring: For anesthetic gas analysis.

• ICP Monitoring: For intracranial pressure measurement.

• Cardiac Output Measurement.

• Bed-to-Bed Display: Share information between connected beds.

• Non-contact Infrared Thermometer: For temperature measurements.

• Nurse Call System integration.

This system ensures a high level of patient safety and efficiency in critical care and surgical environments.
