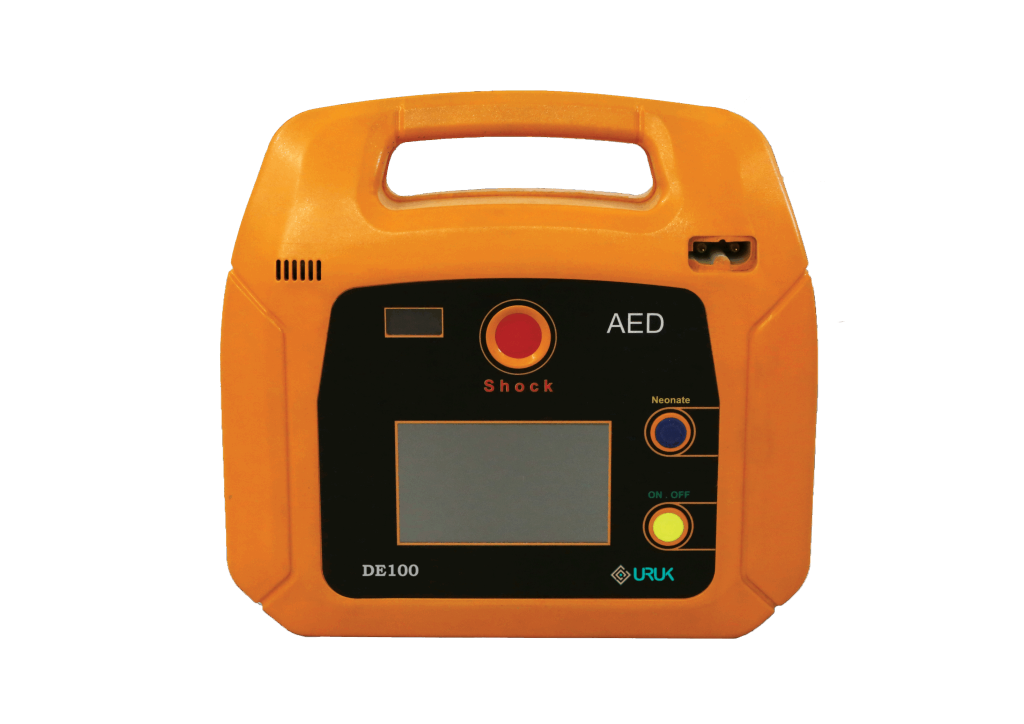

• Device Type: Automated External Defibrillator (AED)
  • Display: 5-inch high-resolution LCD with resistive touchscreen
  • Defibrillation Modes: Semi-automatic and Fully-automatic
  • Waveform: Rectilinear Biphasic
  • Shock Energy Levels:
  • – Sequential (Adult): 120J, 150J, 200J
  • – Sequential (Pediatric): 50J, 70J, 85J
  • – MAX Mode: Adult 200J, Child 85J
  • Response Time:
  • – Power-on to shock (200J): <25 sec
  • – Charge time to 200J: <10 sec with new battery
  • Monitoring: Non-diagnostic ECG in lead II configuration
  • Battery Options: Rechargeable (Li-Ion) or Non-rechargeable (LiMnO2)
  • Battery Life:
  • – Up to 200 shocks or 6 hours ECG monitoring
  • – 2-year standby with periodic self-tests
  • Voice & Visual Prompts: Step-by-step AHA/ERC-compliant
  • Memory Storage: Up to 120 minutes of ECG/audio data for 1 or 2 patients
  • Pad Types: Adult and Pediatric (auto-recognition with mode change)
  • Self-Testing: Automatic on power-on, battery insertion, or every 1/7 days
  • Data Export: USB for patient data and event logs
  • Wi-Fi: Status transfer capability
  • Safety Features:
  • – BF-type applied parts
  • – Internal discharge if shock not delivered in 30 seconds
  • – Shockable rhythms include VF and VT >150 bpm
  • – Pad position guidance and CPR coaching
  • Languages: Persian, English
